Originally designed as a student and beginner amp we have to see it today as a professional rehearsal, studio/recording, backstage and living room amp.

This amp goes from clean to crunch without any pedal, for lead playing just add a good overdrive pedal or a booster. It is capable of producing sounds from blues to hard rock in an always ear friendly loudness. Amp sounds best with a 12″ speaker in the big cab, likes single coils and humbuckers.

Specs

• Circuit: original 5F1 circuit from 1958 with improvements
• Rectifier: 5Y3 GT
• Power Amp: 1×6V6, Class A single ended, 5W
• Bias Circuit: cathode biased
• 1^st Gain/Driver: 12AX7/ECC83
• Controls: Volume
• Inputs: Hi 1, Lo 2 (-3dB)
• Output: one speaker out
• Output Z: 4Ω, 8Ω or 16Ω

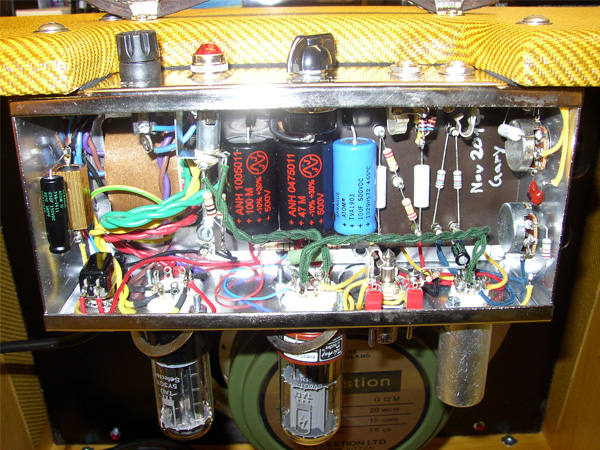

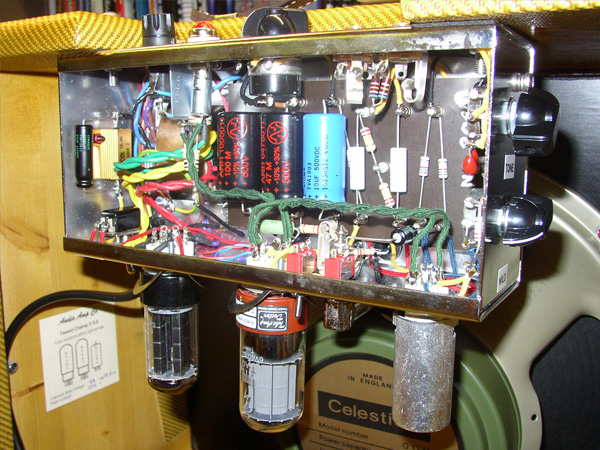

• Features: steel chassis, hand wired, point to point on turret board, tube clamps, Standby switch, MERCURY MAGNETICS^® USA transformers

Options

• Fat/tight switch for input stage
• Wild switch (negative feedback »off«)
• Wild control (adjustable negative feedback)
• Tone pot
• 8″, 10″, 12″ speaker

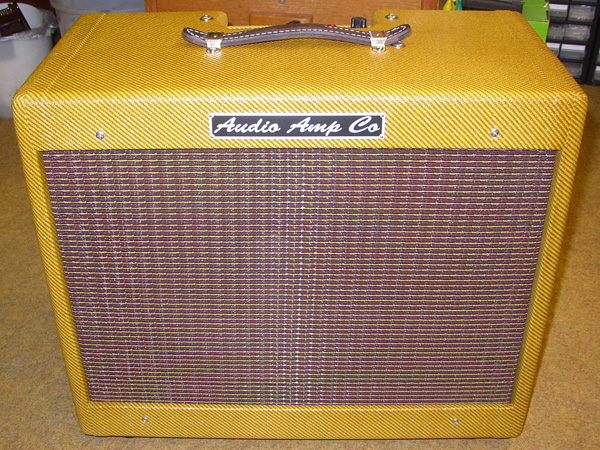

• Available as 1×8″, 1×10″ or 1×12″ Combo (lightweight solid spruce)

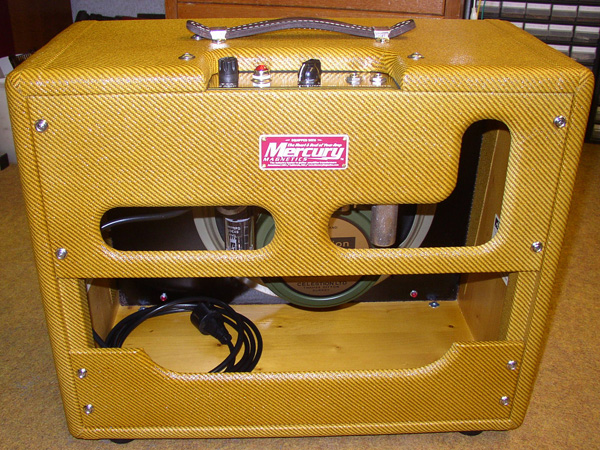

• Big cabinet (Tweed Deluxe style) or small cabinet (original style), big cab fits all speaker types
• Colour of pilot lamp (red, amber, blue, green or purple)
• Colour/shape of control knobs
• Strap handle style and type
• Covering and grillcloth
• Flightcase (6 or 9mm version)
