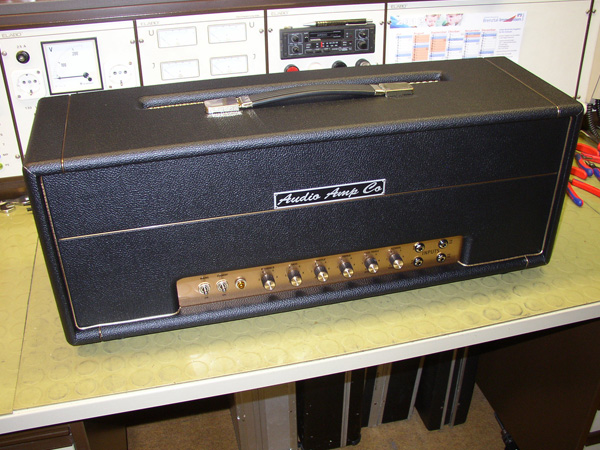

AUDIO AMP CO JMP 100

The amp that defined Rock music in the later 60ies with all the big guitar and bass players of that particular area.

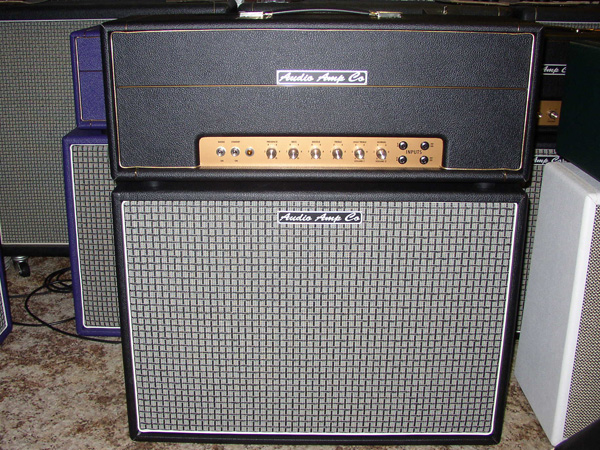

More volume, more SPL and more tone. The ultimate Plexi amp with a lot of possible features never found in an original. Suitable for Bass and Organ/Keyboards usage, too. Loves all kind of guitars and pickups, works with every good pedal. Needs a good and powerful 1×12″ cab, 2×12″ cab or the classic 4×12″ cab/stack.

Der Verstärker, der in den 1960er Jahren Rockmusik neu definiert hat, genutzt von all den großen Gitarren- und Bass-Spielern dieser Zeit.

Mehr Lautstärke, mehr Schalldruck und mehr Ton. Der ultimative Plexi-Amp mit vielen möglichen Optionen, die es in keinem Original je gegeben hat.

Der Amp kann auch für Bass und Orgel/Keyboard-Setups verwendet warden! Er verträgt sich hervorragend mit allen Varianten von Gitarren und Pickups, sowie mit jedem guten Pedal. Benutzen Sie ihn bevorzugt mit einer guten 1×12″ Box, 2×12″ Box oder der klassischen 4×12″ Box/Turm Kombi, wenn es laut sein darf!

Specs

  • Circuit: original British circuit from 1966 with improvements
  • Rectifier: Diode Bridge

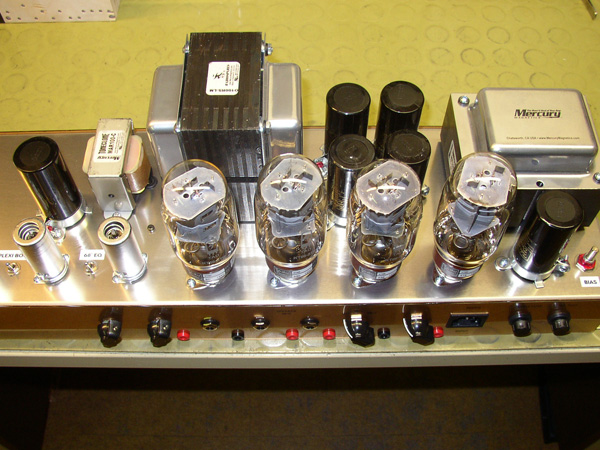

  • Power Amp: 4×KT66 or 4×EL34 or 4×6L6 or 4×6CA7 tubes, Class A/B push/pull, 100W
  • Bias Circuit: adjustable negative grid bias
  • Driver/PI stage: ECC803S
  • 1st gain stage: ECC803S
  • 2nd gain stage: ECC803S
  • Controls: Presence, Bass, Middle, Treble, High Treble Vol., Normal Vol.
  • Inputs: High Treble Volume Hi 1, Lo 2 (-6dB), Normal Volume Hi 1, Lo 2 (-6dB)
  • Output: three speaker outputs (2×8Ω, 1×16Ω)
  • Output Z: 8Ω and 16Ω
  • OT primary Z: switchable between 2,2k or 3,4k
  • Power: 100W

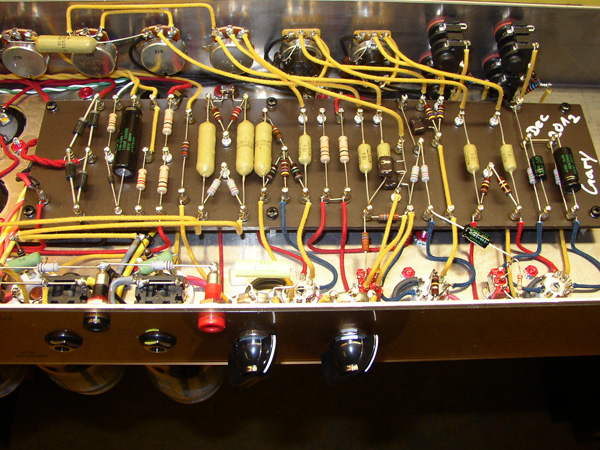

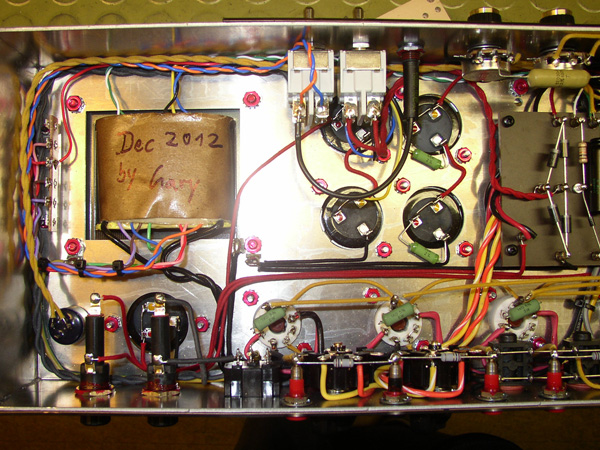

  • Features: aluminium chassis, hand wired, point to point on turret board, Bias test jacks (4mm banana type), MERCURY MAGNETICS® USA transformers

Options

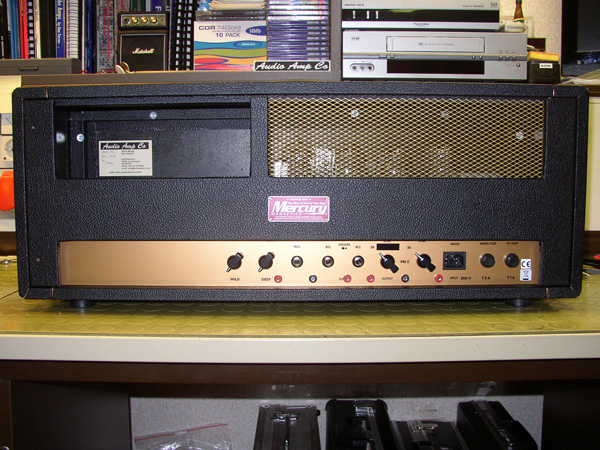

  • Wild Control (adjustable feedback)
  • Deep Control (adjustable fatness)
  • Plexi Boost switch (frequency depended 3dB gain boost)
  • EQ switch I, treble cap (250pF or 500pF) switchable
  • EQ switch II, EQ slope (33k, 100k or 56k) switchable
  • Push-pull bright switch for both channels
  • SOZO® Vintage Caps
  • Colour/shape of control knobs
  • Colour/style of pilot lamp (amber, red or green)
