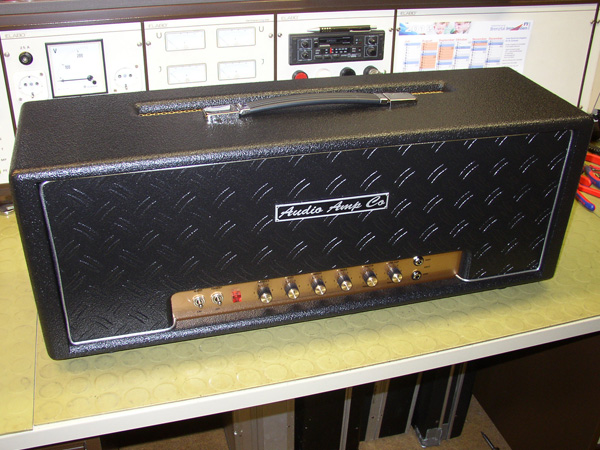

AUDIO AMP CO JMP 100 MV

Basically my personal tribute Amp to the guitar heroes of my youth, Kerry King and Jeff Hanneman (Slayer), Kirk Hammet and James Hetfield (Metallica).

They all used MARSHALL® JMP and JCM800 2203/2204 heads in the early days of their career, mostly modified or boosted with dedicated pedals or other small rack units from that period, commercially available and widely in use.

The AUDIO AMP CO JMP 100 MV offers a different approach to all that and can be played without any kind of pedal in front of it or, if the »classic« Lo input is used, with any pedal you like to put in front of the circuit.

The JMP MV offers further features never found in modded 2203/2204 MARSHALL® models or original models from those years.

The switchable primary impedance of the OT is a new feature never offered by any other builder. The »Wild« and »Deep« controls offer even greater control than on any other amp in this range and give more flexibility and variability.

It is an amp for the purist player who does not need three or four channels, just one that gives him »that special» tone to concentrate on his music and his playing.

Gelinde gesagt, mein persönlicher Tribute Amp an die Gitarrenhelden meiner Jugend, Kerry King and Jeff Hanneman (Slayer), Kirk Hammet and James Hetfield (Metallica).

Sie alle haben in den frühen Jahren ihrer Karriere MARSHALL® JMP und JCM800 2203/2204 Topteile benutzt, meistens modifiziert oder angeblasen mit bestimmten Pedalen oder kleinen Rackgeräten dieser Ära, die es eben damals gab und die oft verwendet wurden.

Der AUDIO AMP CO JMP 100 MV bietet einen anderen Ansatz für alle diese Anwendungen und kann generell ohne ein ihm vorgeschaltetes Pedal gespielt werden, oder, unter Verwendung des »classic« Lo Eingangs, mit jedem Pedal vorgeschaltet, dass Sie gerne haben und verwenden möchten.

Der JMP MV bietet desweiteren Ausstattungsdetails, die es nie in modifizierten MARSHALL® 2203/2204 oder den Originalen gegeben hat. Die umschaltbare Eingangsimpedanz des Ausgangsübertragers ist ein völlig neues Ausstattungsdetail, welches noch nie von einem anderen Hersteller angeboten wurde. Die »wild« und »deep« Regler bieten noch größere Vielfalt und Variabilität als jeder andere Amp in dieser Klasse.

Das Modell an sich ist dem puristischen Spieler gewidmet, der keine drei oder vier Kanäle braucht, sondern nur einen, der ihm »den« Ton bietet, um sich völlig auf seine Musik und das Gitarrenspiel zu Konzentrieren.

Specs

  • Circuit: AUDIO AMP CO design and layout, based on MARSHALL® 2203
  • Rectifier: Diode bridge

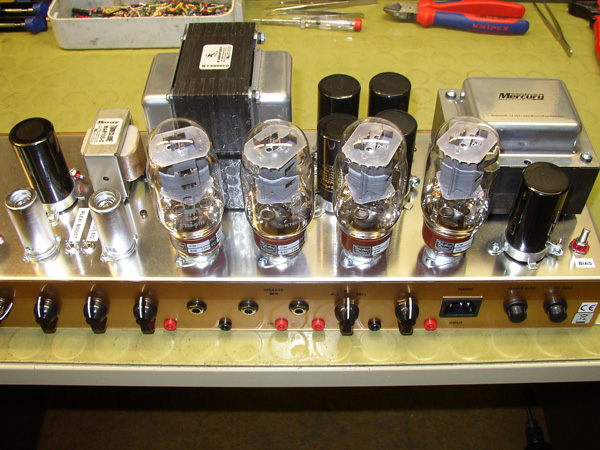

  • Power Amp: 4×KT66 or 4×EL34 or 4×6L6 or 4×6CA7 tubes, Class A/B p/p
  • Bias Circuit: adjustable negative grid bias
  • Driver/PI stage: 12AX7-C
  • CF stage: 12AX7-C
  • 1st gain stage: ECC803S
  • Booster stage: 7025

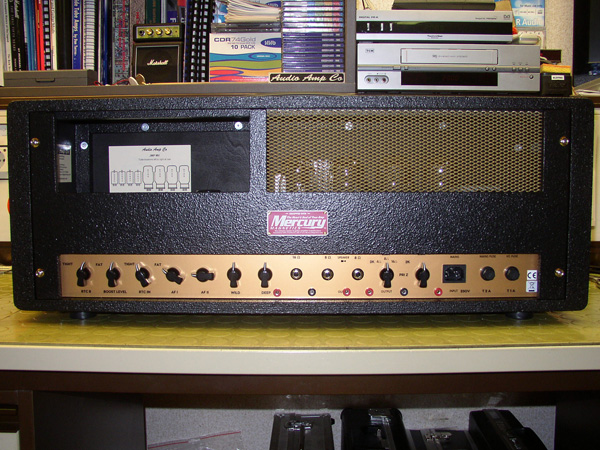

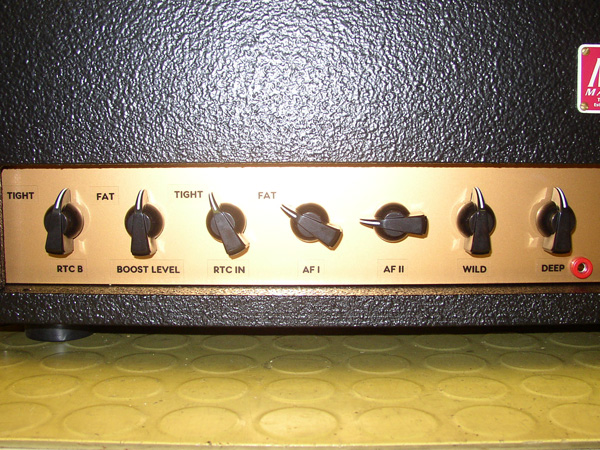

  • Controls: Presence, Bass, Middle, Treble, Master, Preamp Gain, Booster Level, Booster RTC, Character RTC, AF I, AF II, Deep, Wild
  • Inputs: Booster Input or Classic Hi Sensivity Input
  • Output: three speaker outputs
  • Output Z: 8 and 16Ω
  • OT primary Z: switchable between 2k or 3,3k, input primary Z
  • Power: 100W

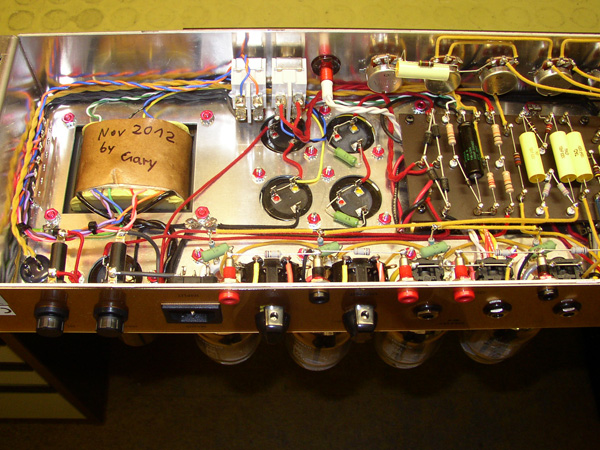

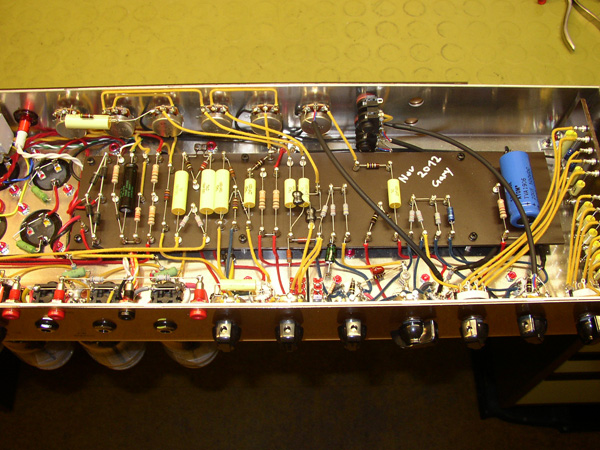

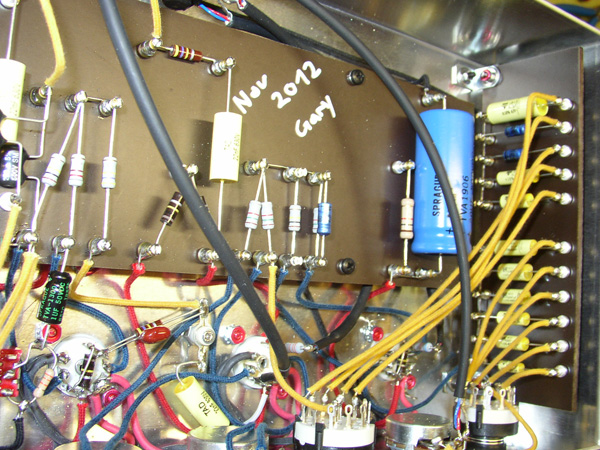

  • Features: aluminium chassis, hand wired, point to point on turret board, Bias test jacks, 4mm banana type, MERCURY MAGNETICS® USA transformers
